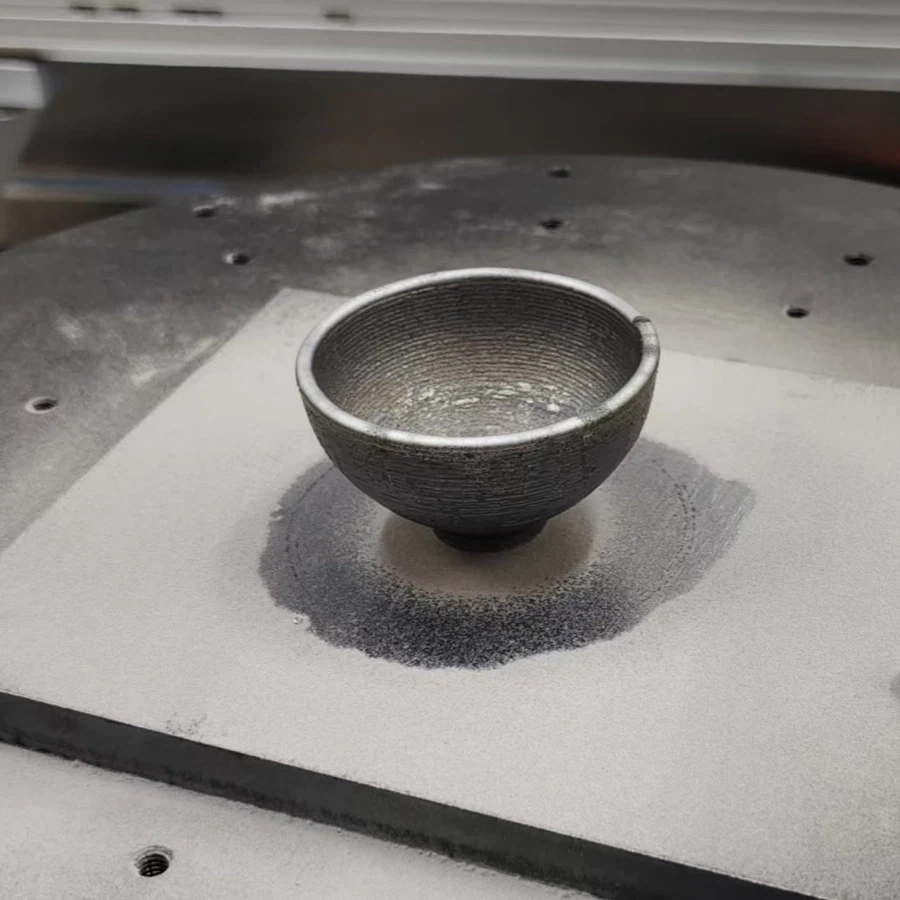

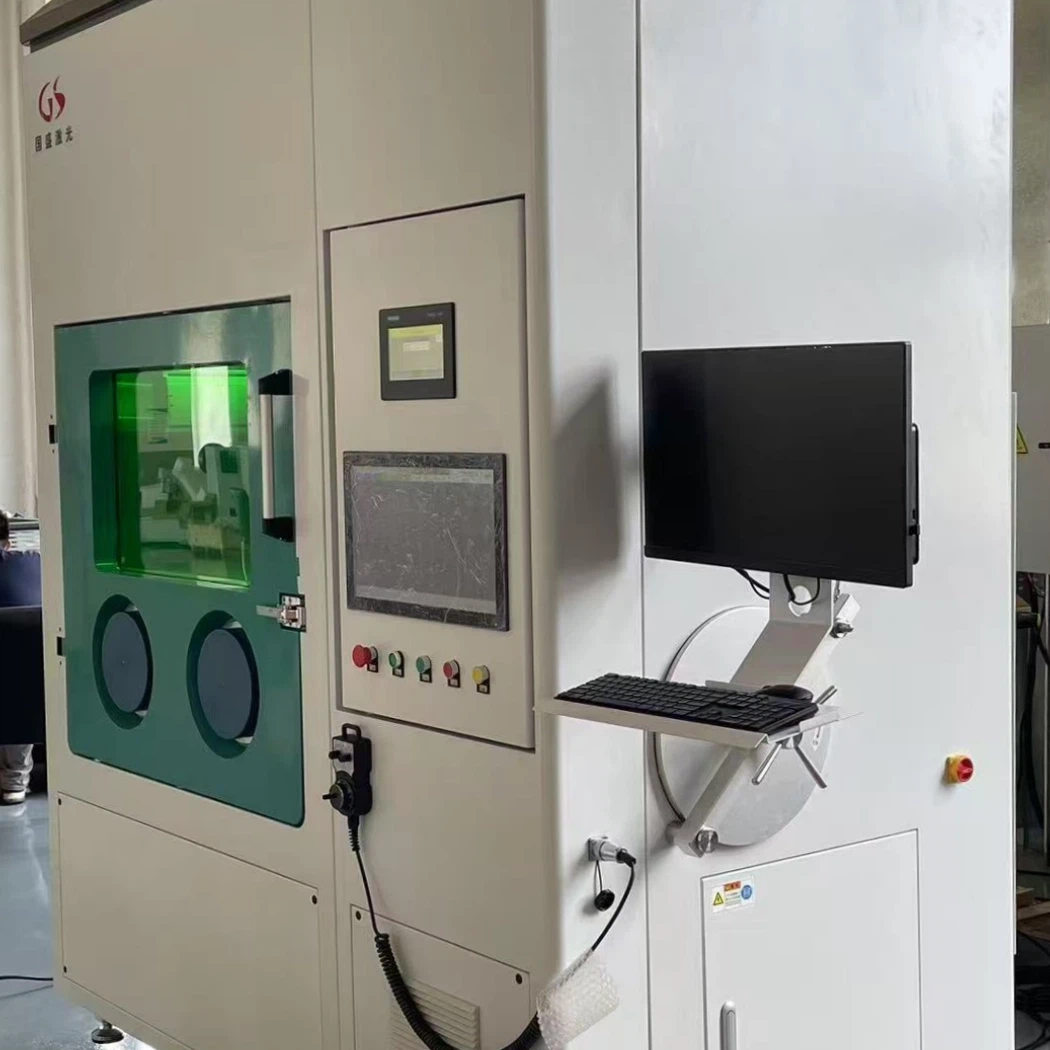

Directed Energy Deposition

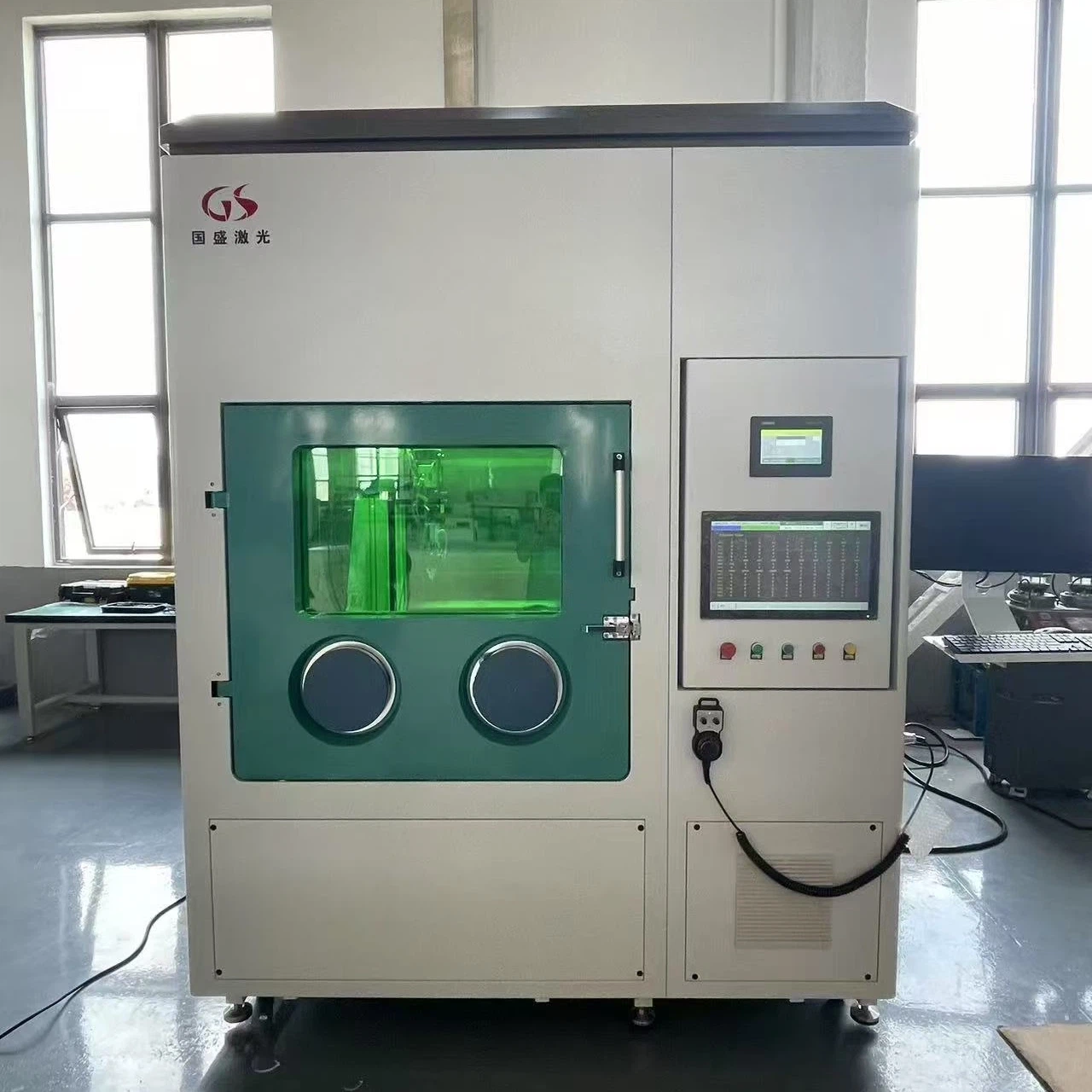

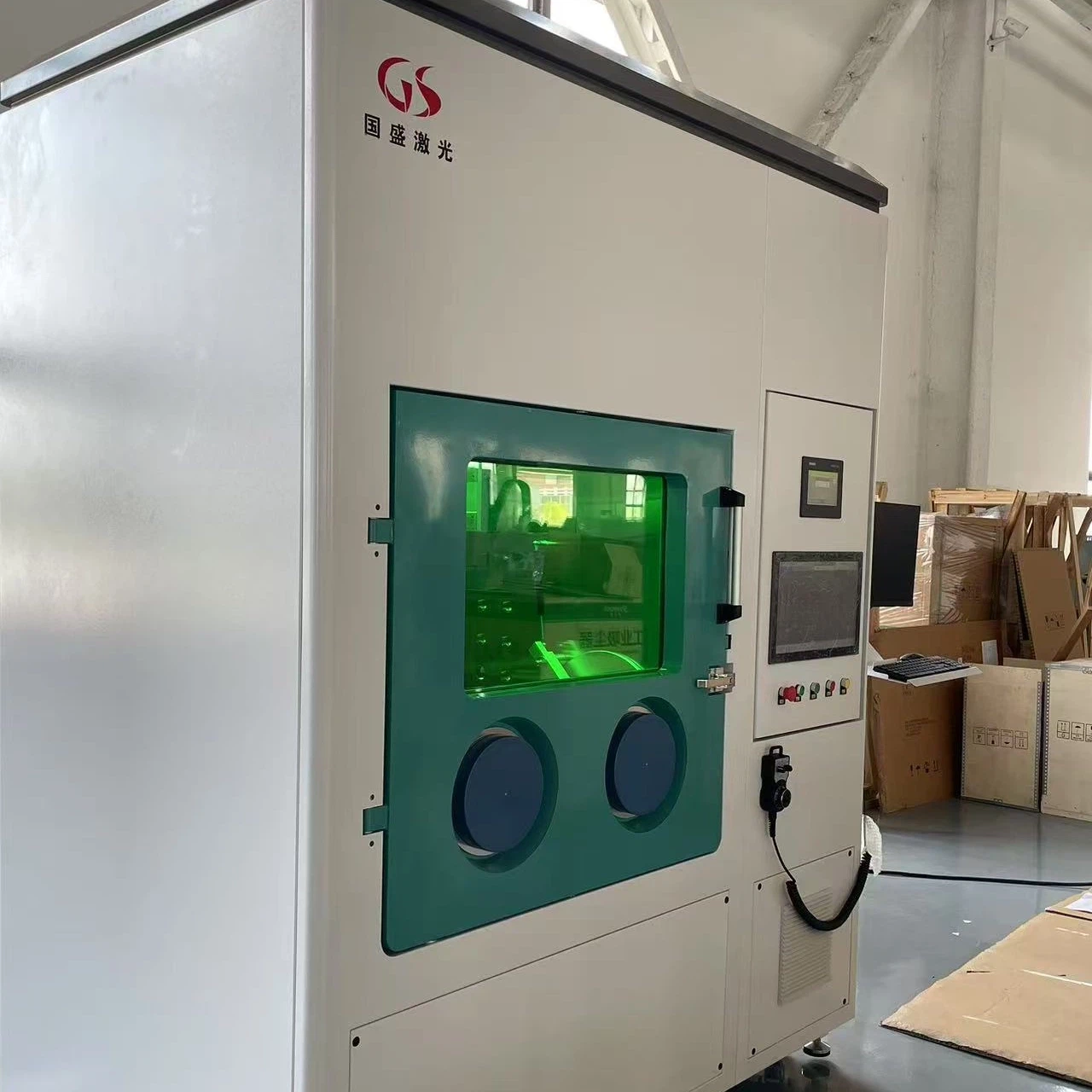

• Dimensions: 1100mm (Length) × 900mm (Width) × 1600mm (Height), steel structure support height 950mm, with universal casters ;
• Material: 304 stainless steel (thickness 3mm), leak rate < 0.05 vol%/h, can maintain pressure of -12mbar ~ 12mbar (default working range: -1 ~ +3mbar) 🔶1-34, 1-38, 1-44, 1-126 to 1-127🔷;
• Core Components: 8-inch butyl rubber gloves (imported from USA, thickness 0.4mm), anti-corrosion hard aluminum alloy glove port (diameter 220mm), 8mm detachable safety tempered glass observation window, 0.3μm filter (with observation window and manual shut-off valve), 220V±10% 50Hz±10% multi-hole power socket, KF-40 standard interface .

• Operating Mode: Continuous/Pulsed;

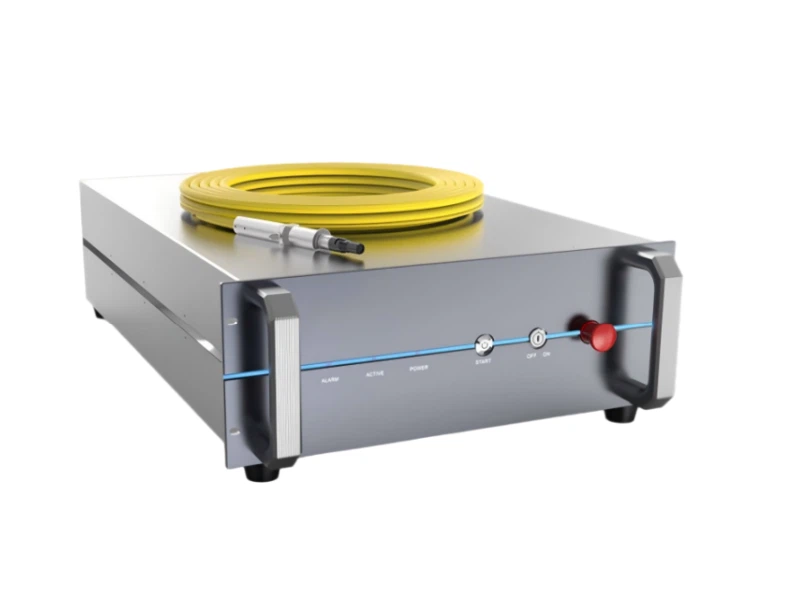

• Output Power: 2000W (100% continuous), adjustment range 10%-100%
• Central Wavelength: 1070-1090nm (typical 1080nm)
• Beam Quality (BPP): 0.5-2.5 mm×mrad
• Stability: Short-term (>1h) ±1%-±3%, long-term (>24h) ±2%-±5%
• Optical Fiber Configuration: 15m optical cable, output core diameter 50μm (35/100μm optional), bending radius 200mm

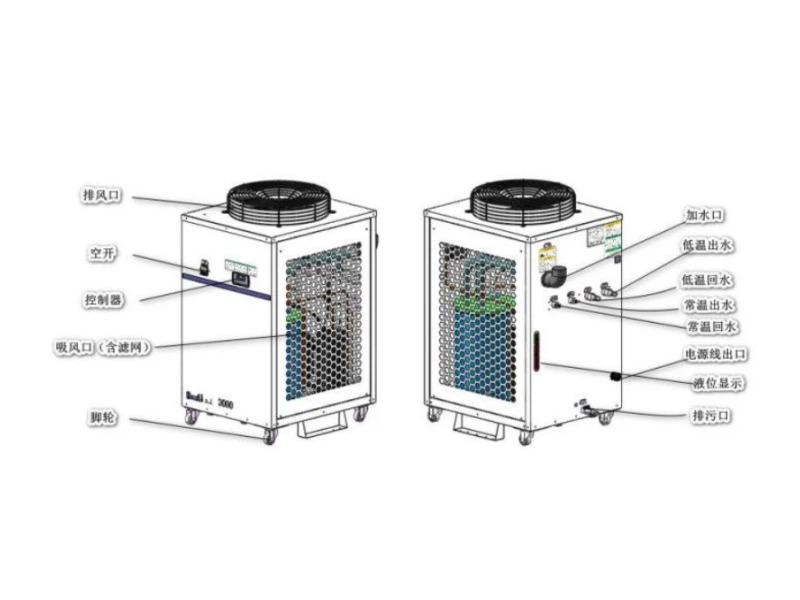

• Cooling Method: Water cooling (water temperature 20-24℃, water pressure 4-5bar, flow rate 20L/min)
• Overall Dimensions: 950×482.6×193.2mm
• Weight: 68±3kg

• Power supply & rated power: Adopts a 220V/50Hz power supply, with a rated power of 2.8kW.
• Refrigerant details: Uses R32/R410A refrigerant, with a charging amount of 0.3kg.
• Cooling performance: Features a rated cooling capacity of 6.5kW.
• Fluid circulation parameters: Equipped with a flow rate of 12m³/h and a head of 37m, enabling efficient heat dissipation.
• Water tank: Includes a built-in 13L water tank to meet continuous water supply needs.

• Equipment compatibility: Compatible with G6-G8.5 size substrate equipment.

• Overall Dimensions / Weight: 640 × 420 × 760mm / 640kg

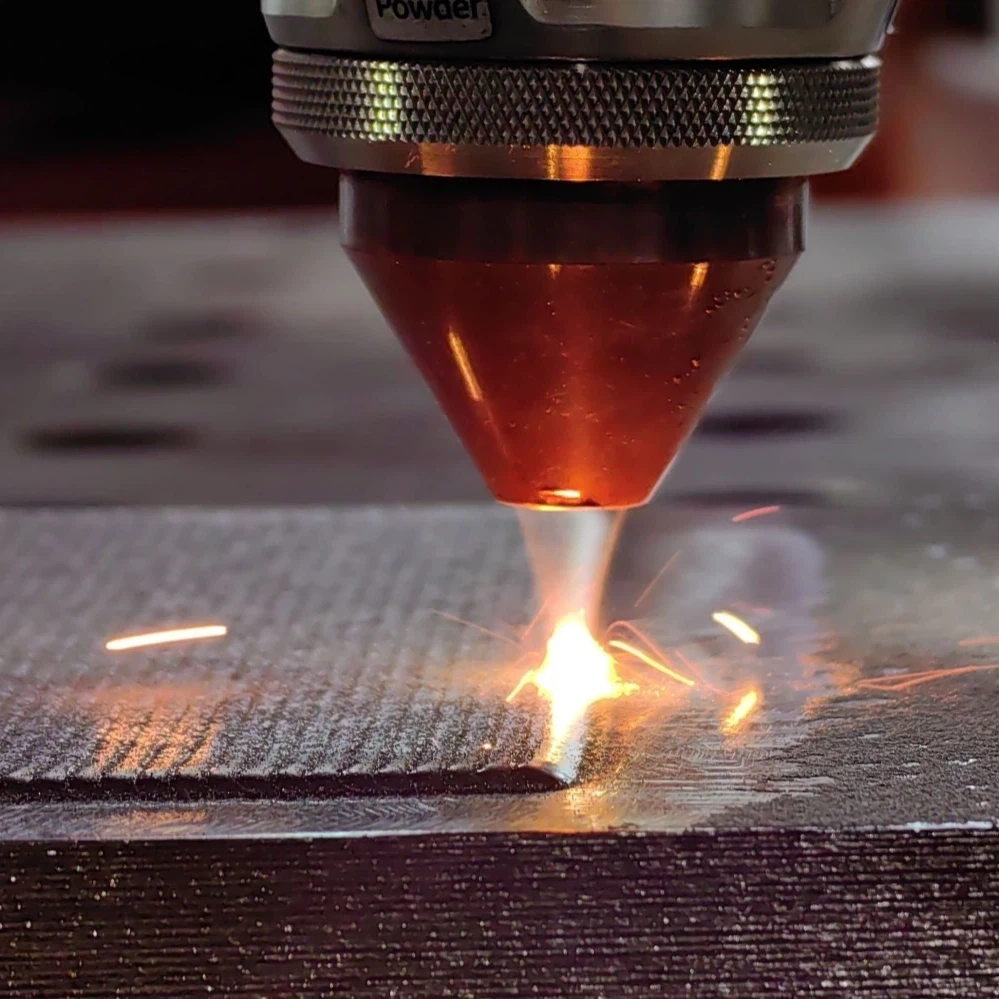

• Interface: Adopts QBH standard interface, enabling quick connection with mainstream laser sources.
• Optical system configuration: Equipped with a 100mm collimation focal length and a 300mm focusing focal length, allowing efficient convergence of laser beams.
• Powder spot adjustment: Has an adjustment range of ∅1.6-∅4mm.
• Laser spot adjustment: Features an adjustment range of ∅1.8-∅5mm (with a laser core diameter of 600μm).
• Adaptability: These adjustment ranges can meet different requirements for cladding width and precision.
• Performance benefits: Helps improve the uniformity and bonding strength of the cladding layer.

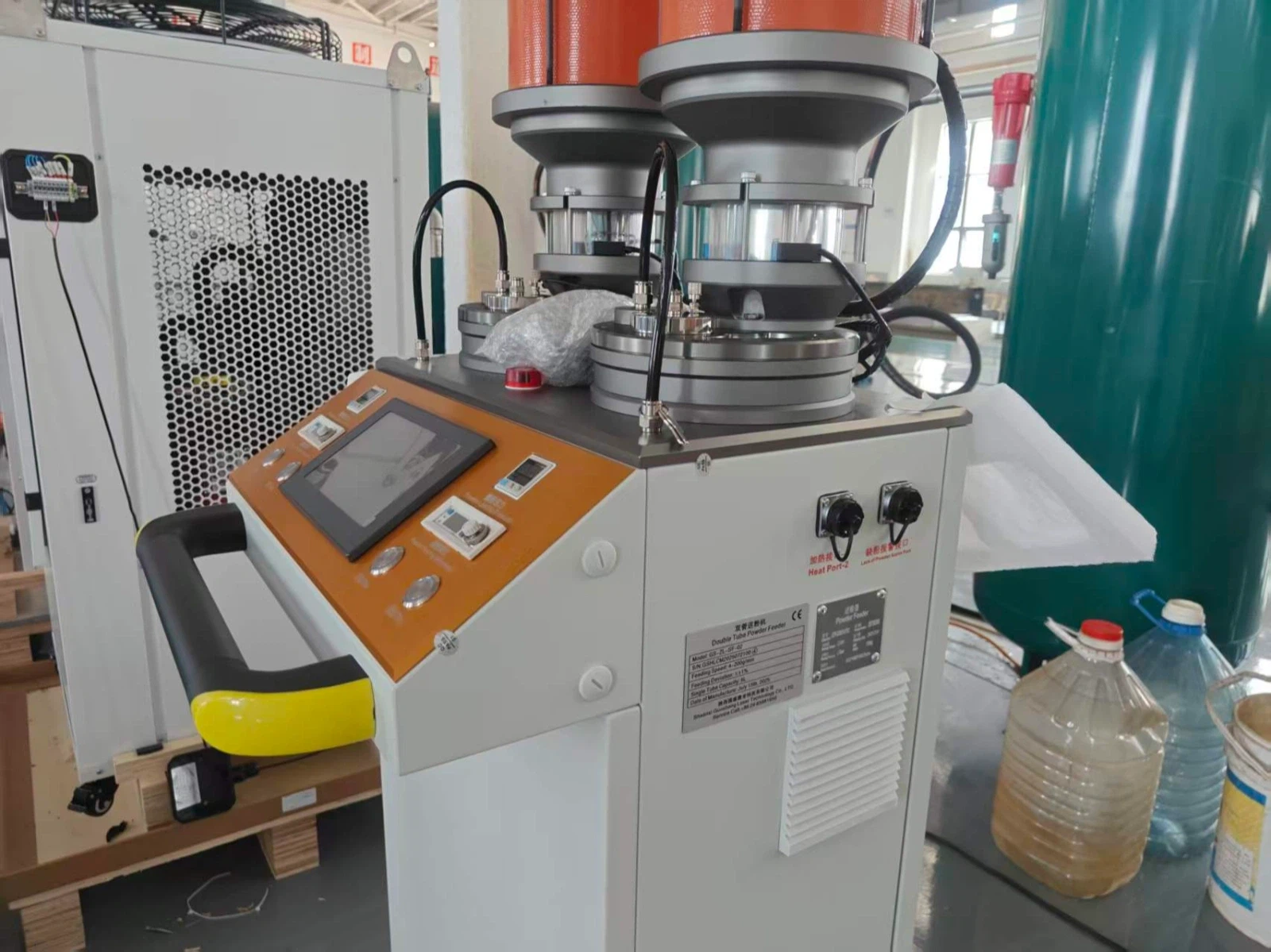

• Powder storage bins: Equipped with 2 powder storage bins, with a capacity of 6L per bin, which can meet the needs of continuous operation.
• Powder feeding rate: Features a powder feeding rate range of 4-200g/min, with an error of ≤±1%.
• Applicable powder particle size: Compatible with powders of 20-250μm particle size, ensuring uniform and stable powder supply.
• Remote control support: Supports remote control via robot, CNC, or PC.
• Anti-caking functions: Equipped with powder heating and stirring functions to prevent powder caking.
• Overall Dimensions / Weight: 533 × 480 × 1617mmmm / 70kg

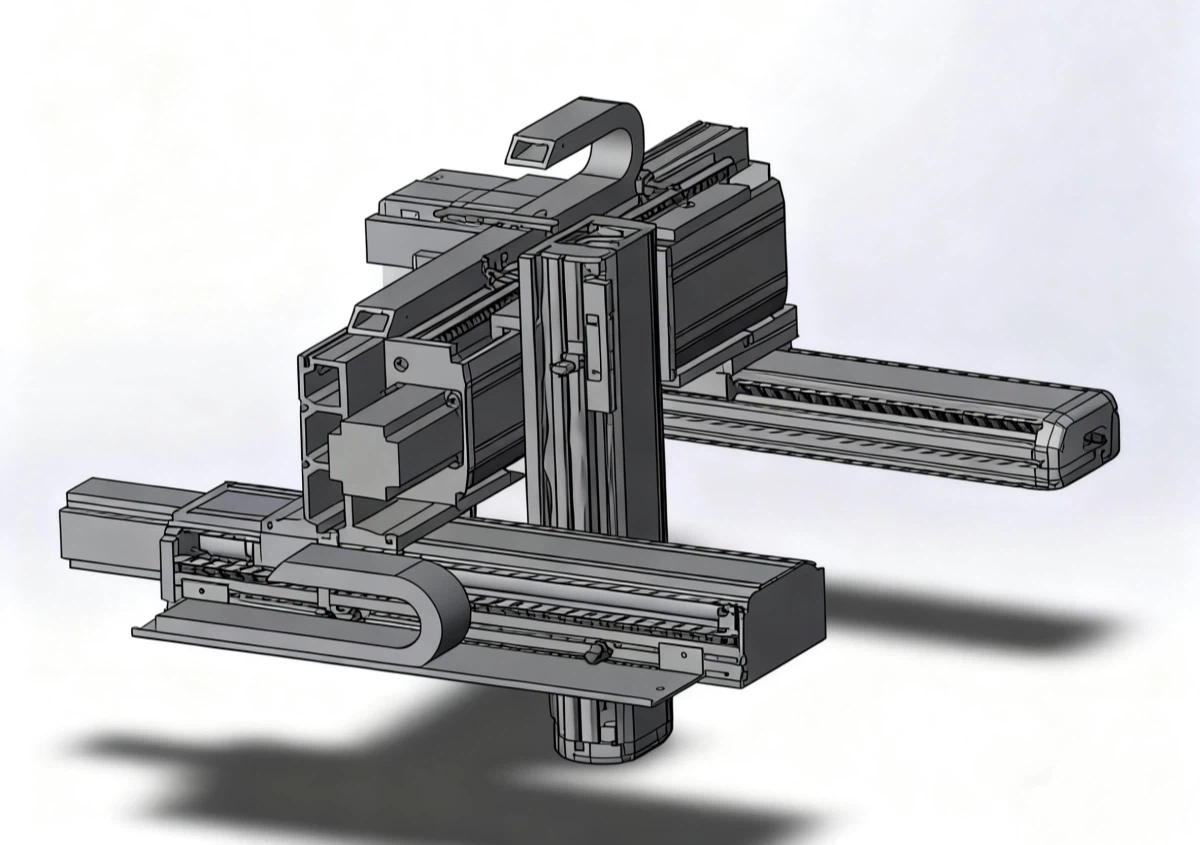

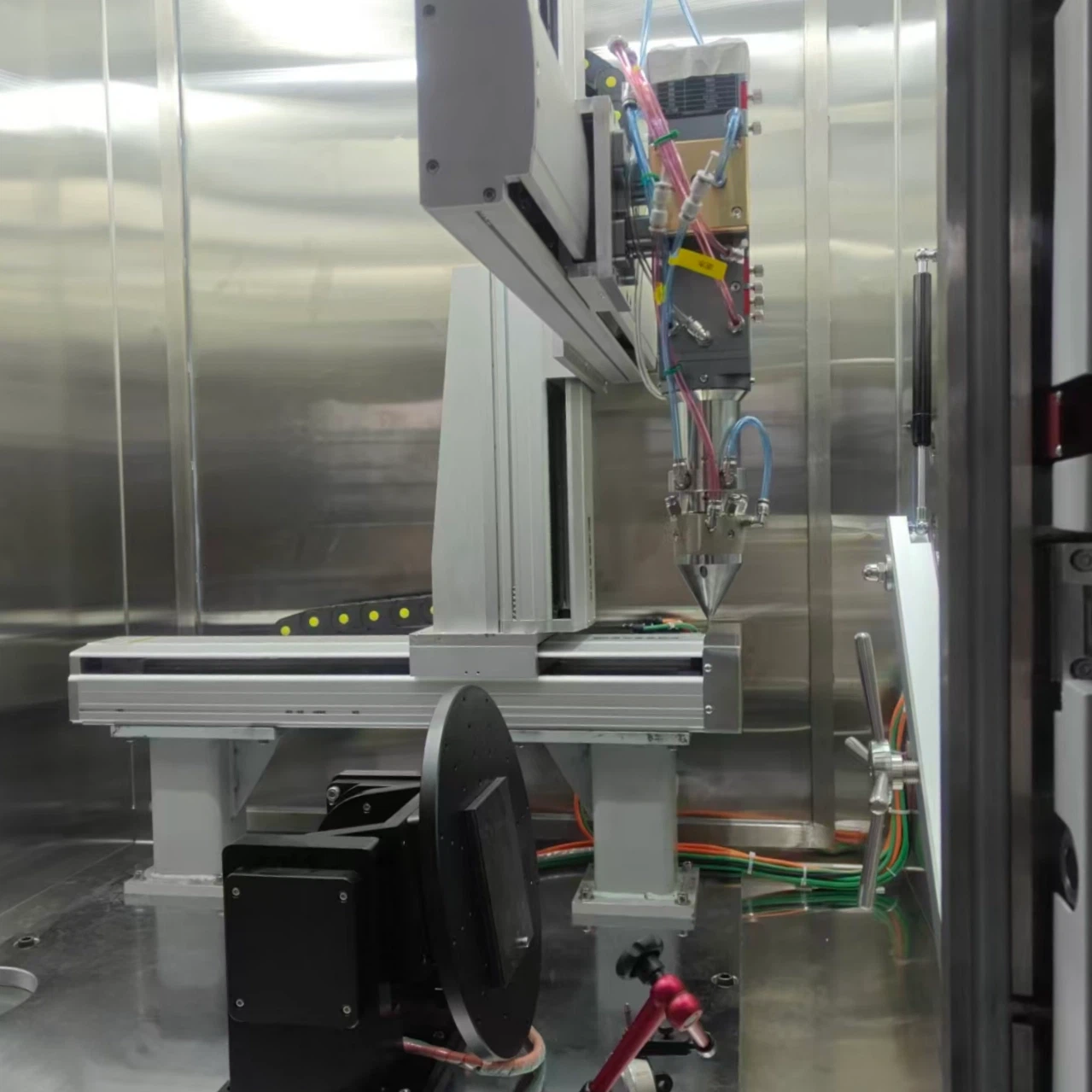

• Effective stroke: Features an effective stroke of 400×400×400mm, covering the processing needs of small and medium-sized metal parts.
• Positioning accuracy: Boasts a positioning accuracy of 0.1mm.
• Repeat positioning accuracy: Offers a repeat positioning accuracy of ±0.05mm, enabling stable control of motion deviation to ensure precise cladding trajectories.
• Maximum processing speed: Has a maximum processing speed of 2000mm/min, balancing efficiency and precision.
• End-axis load: Provides an end-axis load of 35kg, adaptable to various tooling and workpieces.
• Motion strategy: Adopts an incremental motion strategy to achieve uniform coverage of the entire working area.

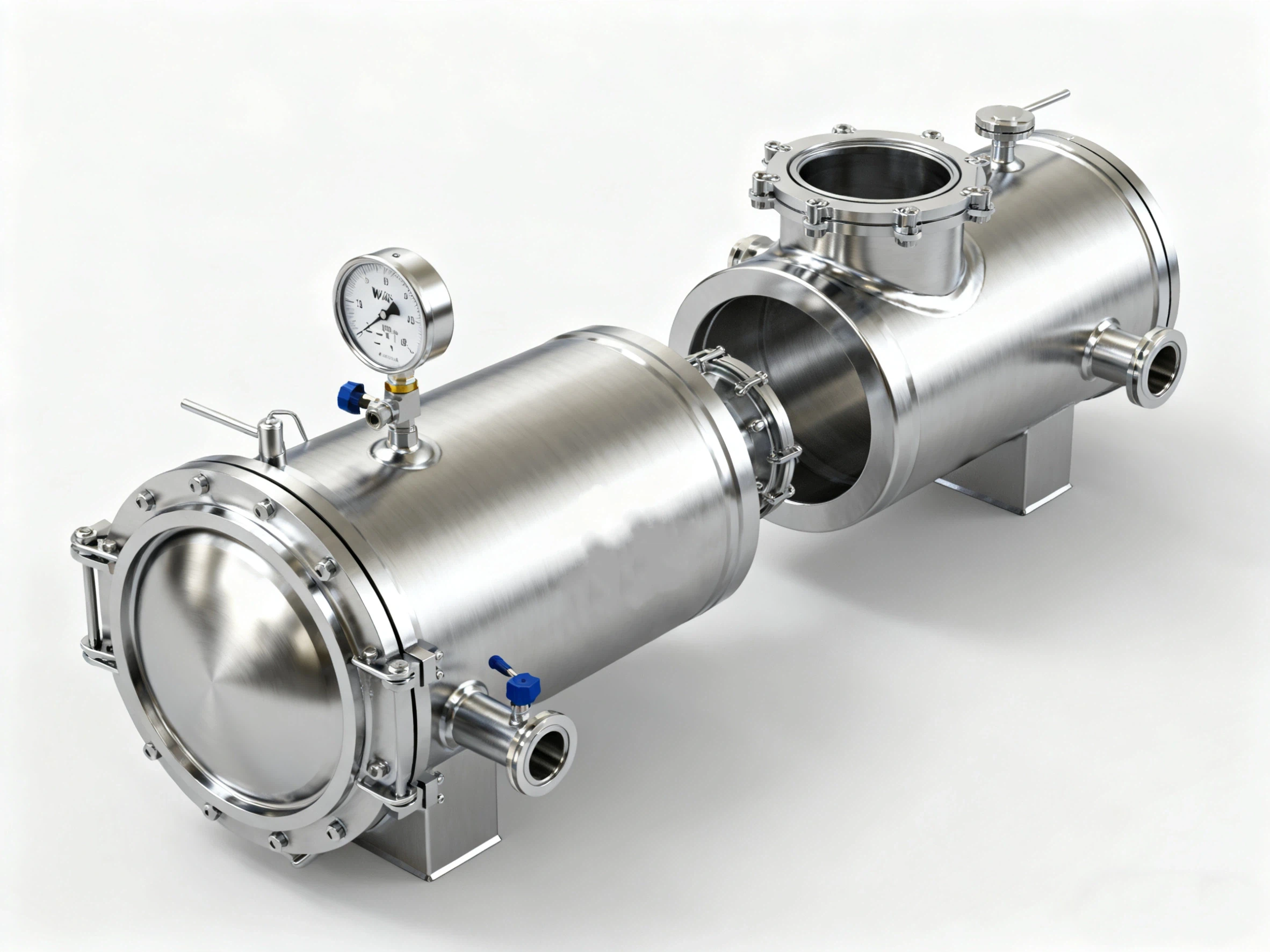

• Material: Made of 304 stainless steel.
• Structure: Features a cylindrical design, consisting of two chambers.
• Large chamber dimensions: Measures ∅360mm × 600mm.
• Small chamber dimensions: Measures ∅150mm × 300mm.
• Vacuum performance: Achieves a vacuum degree of ≤-0.1MPa.
• Vacuum monitoring: Equipped with a German Wika vacuum pressure gauge for real-time monitoring.
• Operational benefits: Facilitates efficient workpiece transfer while ensuring stable vacuum performance.

• Deoxidation material: Utilizes Germany's BASF deoxidation material, with an oxygen absorption capacity of 63L.
• Water absorption material: Adopts USA's UOP water absorption material, with a water absorption capacity of 2.2kg.
• Valve configuration: Paired with Germany's Baode valves to precisely control atmosphere purity.
• Circulation fan frequency control: Features 0-100m³/h frequency conversion control.
• Circulation fan structure: Has a stainless steel pressure-tested structure.
• Filter type: Equipped with a 0.3μm HEPA high-efficiency filter.
• Filter function: The HEPA filter is used to trap micro-impurities.

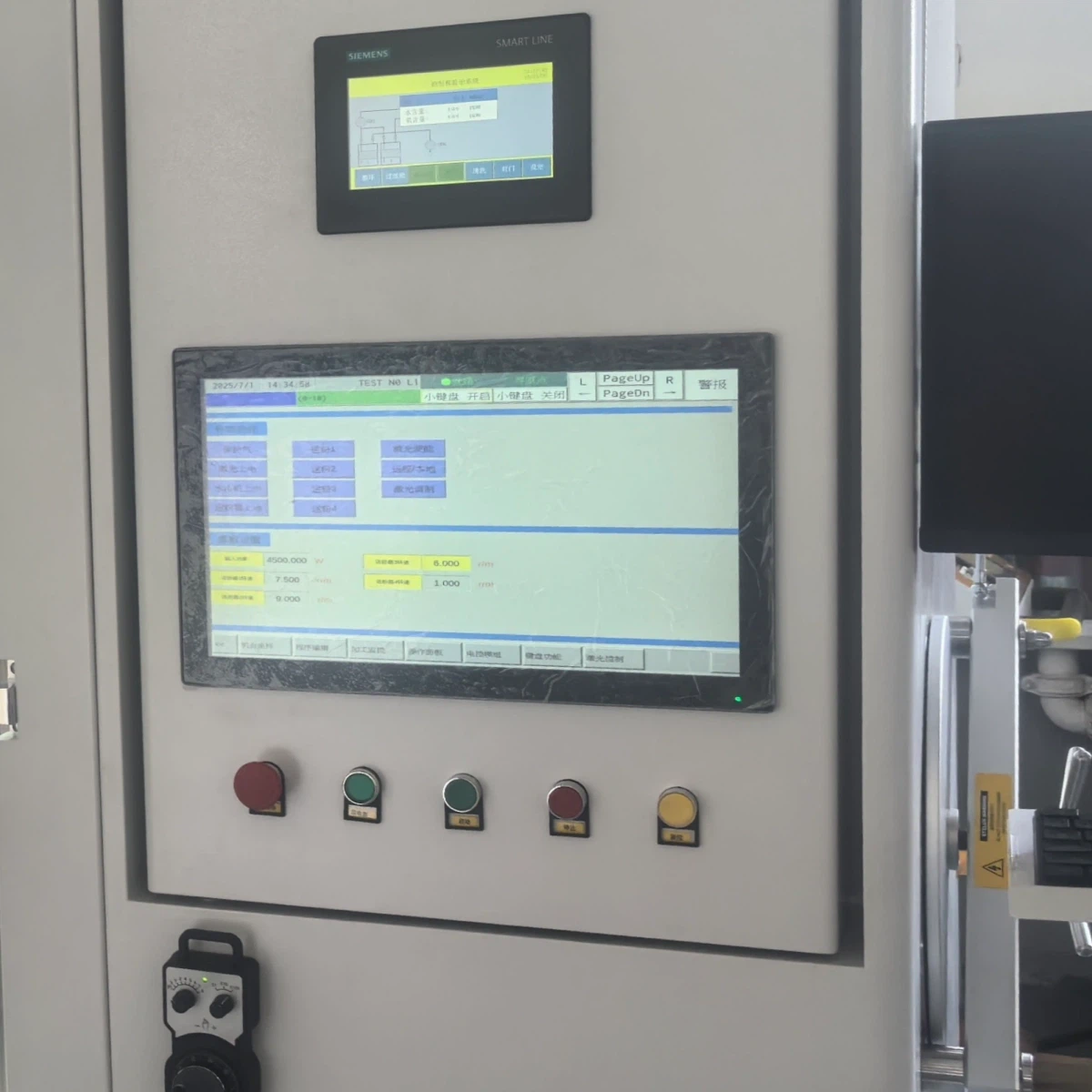

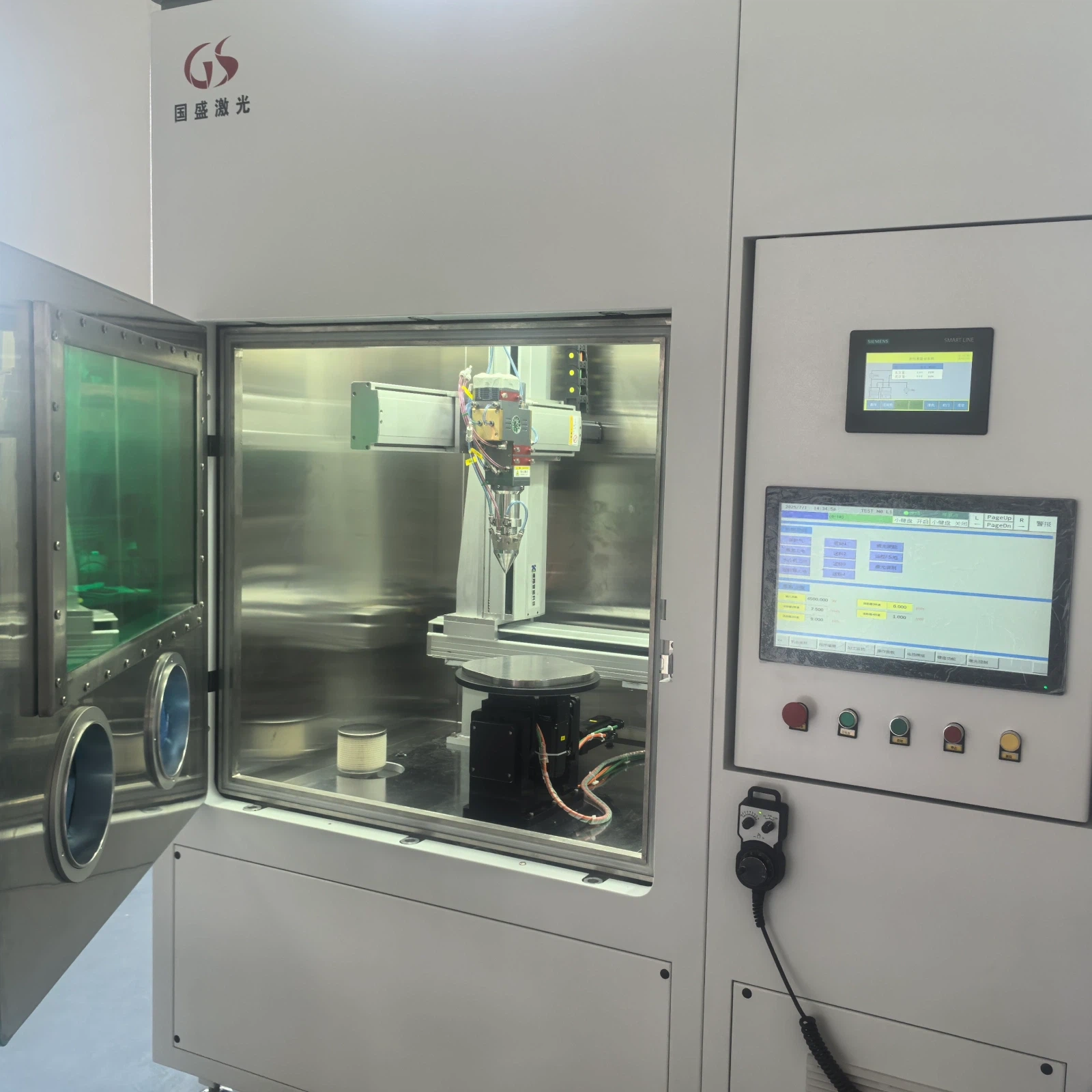

• Core hardware configuration: Consists of a Siemens PLC + touch screen.
• Language support: Supports Chinese-English bilingual switching for user convenience.
• Axis motion control capability: Can realize axis motion control, including positioning and speed adjustment.
• Full-process status monitoring: Enables full-process status monitoring, covering key parameters like gas purging, oxygen content, and temperature.
• Laser cladding parameter control: Achieves precise control of laser cladding parameters, including laser power and powder feeding amount.
• Automatic pressure relief: Automatically relieves pressure when the system pressure exceeds 12mbar to ensure safety.

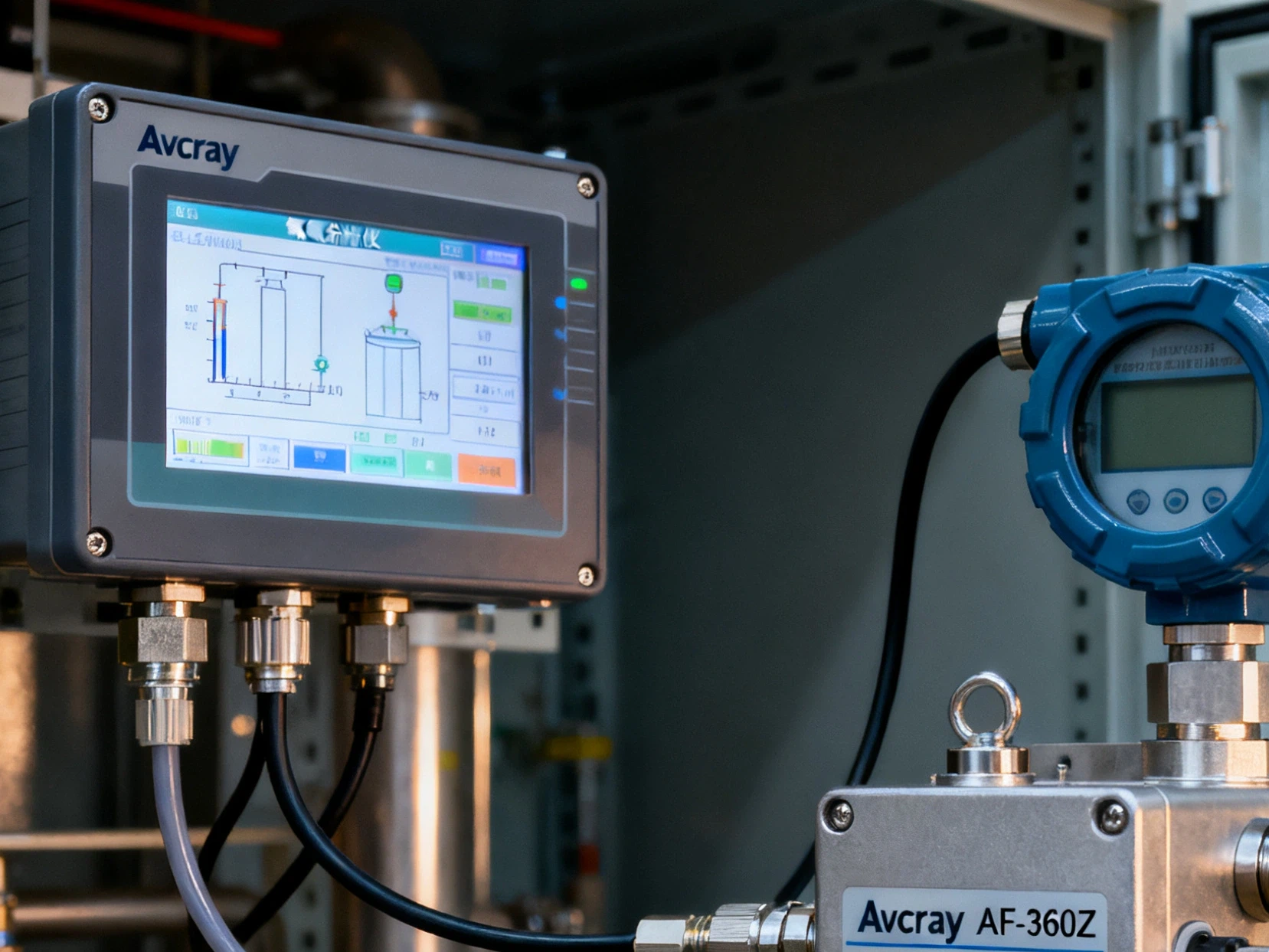

• The Avcray AF-360Z Oxygen Analyzer, with a measuring range of 0-1000ppm and accuracy of ±1%ppm. Its zirconia probe resists direct air exposure, enabling real-time monitoring of chamber oxygen content, and it connects to the PLC touch screen for data display.
• The Avcray AF-360P Water Analyzer, with a range of 0-500ppm and accuracy of ±1%ppm, features corrosion resistance and cleanable reuse. It also links to the PLC touch screen and supports automatic gas circulation adjustment.
• Together, they ensure precise control of low-oxygen and low-humidity environments critical for DED quality.
