Guosheng offers a full range of water chillers, all using eco-friendly refrigerant R410A and supporting an IP44 protection rating. Below are details for the three models, including features, applicability, and estimated dimensions (based on industry standards; actual values may vary).
Detailed Parameter Comparison Table
The table below summarizes all key parameters, including estimated dimensions and weights (inferred based on power and component scale; actual values may vary). Data is based on technical specification sheets, highlighting core requirements for laser additive manufacturing.
| Parameter Category |
3000W Laser Water Chiller
|
6000W Laser Water Chiller
|
12000W Laser Water Chiller
|
| Reference |
 |
 |
 |
|
Applicable Laser Power (W) |
3000 |
6000 |
12000 |
|
Power Supply System |
1/PE AC 220V 50Hz |
3/PE AC 380V 50Hz |
3/PE AC 380V 50Hz |
|
Rated Power (kW) |
3.7 |
7.8 | 14.2 |
|
Main Circuit Rated Flow (L/min) |
>25 |
>40 |
>120 |
|
Main Circuit Rated Pressure (bar) |
3 |
4 |
4 |
|
External Optical Path Rated Flow (L/min) |
>2 |
>2 |
>3 |
|
Tank Volume (L) |
40 |
100 |
150 |
|
Temperature Control Accuracy (°C) |
±2 |
±2 |
±2 |
|
Noise Level dB(A) |
67 |
70 |
74 |
|
Protection Rating |
IP44 |
IP44 |
IP44 |
|
Dimensions (Estimated) |
600×400×800 mm |
800×500×1000 mm |
1000×600×1200 mm |
|
Net Weight (Estimated) |
50 kg | 100 kg | 150 kg |
|
Recommended Cable Size |
2.5 mm² | 1.5 mm² | 6 mm² |
|
Best Application Scenario |
- Small cladding - experimental quenching |
- Medium cladding - general quenching |
- Large cladding - heavy-duty quenching |
Additional Notes
3000WDR: Economical Low-Power Solution
- Compatible with 3000W fiber lasers, specifically designed for small-scale laser additive manufacturing applications, serving as a cost-effective low-power solution. enhance flexibility and efficiency.
- Equipped with dual-temperature zone control (main circuit: 15~27°C / external optical path: 20~40°C) and a noise level of only 67dB, suitable for laboratory or small workshop scenarios.
6000WDR: Mid-Power High-Efficiency Model
- Matches 6000W fiber lasers, balancing performance and cost, ideal for medium-scale cladding or quenching operations.
- Boasts a main circuit flow rate >40L/min, equipped with high-quality components such as Highly compressors for reliable operation (no outline diagram included; see specification sheet for details).
12000WDR: High-Power Industrial-Grade Model
- Tailored for 12000W fiber lasers, focusing on heavy-duty industrial applications and supporting long-term continuous operatio
- Configured with a dual-compressor system to deliver a high flow rate (>120L/min) and industrial-grade stability (no outline diagram included; refer to official resources for visuals).
Products Description
Laser additive manufacturing processes like laser cladding (surface repair/coating enhancement) and laser quenching (part hardness improvement) generate substantial heat - and water chillers are the critical solution. By circulating cooling media (e.g., pure water or glycol solutions), they absorb excess heat to keep lasers within set temperature ranges, ensuring uniform energy distribution: preventing material deformation in cladding, guaranteeing consistent hardening layers in quenching, and enabling continuous operation with minimal downtime. Plus, smart temperature control and alarm functions align with Industry 4.0 trends, boosting automation and energy efficiency. Choose the right model by matching laser power, environmental requirements, and budget to maximize ROI.
In laser additive manufacturing, water chillers are indispensable for stabilizing processes such as laser cladding and quenching. Their precise temperature regulation prevents laser overheating, enhancing processing accuracy, extending equipment lifespan, and ensuring process consistency. As these technologies gain traction in aerospace, automotive, and other industries, selecting a suitable water chiller becomes increasingly critical. This guide compiles comprehensive technical data for Guosheng's three models - GS-3000WDR, GS-6000WDR, and GS-12000WDR - including application scenarios, parameter comparisons, and maintenance guidelines.
Product Applications
applications
Aerospace Large Component Repair
Ideal for laser cladding of turbine blades and large components. Recommended model: TFLW-12000W high-power unit ensures stable temperature control, prevents heat-affected zone expansion, and improves coating uniformity and component lifespan. Suitable for continuous operation environments.
Automotive Engine Component Strengthening
Used for laser quenching of engine blocks. Mid-power TFLW-6000W model balances energy consumption and performance, with ±2°C temperature control ensuring uniform hardening layer. Supports batch production and adapts to workshop temperature fluctuations.
Mold Industry Precision Repair
For local laser cladding of injection molds. Low-power TFLW-3000W model offers cost-effectiveness and compact design with low noise. Suitable for small-scale operations, reducing deformation risks.

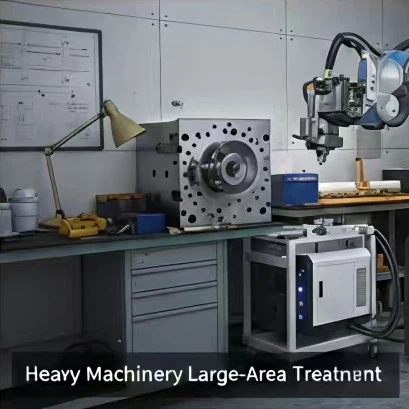

Heavy Machinery Large-Area Treatment
Applied to laser quenching of large components like gears. High-power TFLW-12000W provides high-flow cooling capacity, enhancing efficiency. IP44 protection rating suitable for harsh environments.

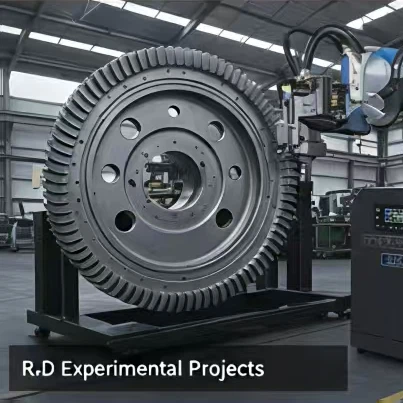

R&D Experimental Projects
Used for material research and prototype development. Low-power TFLW-3000W features easy installation and low energy consumption. Ideal for budget-limited scenarios, using pure water for better control.
General Industrial Medium Component Processing
Covers laser cladding and quenching of mechanical parts. Mid-power TFLW-6000W offers versatile design and cost-effectiveness. Integrated alarm system ensures safe monitoring.
Maintenance and Optimization Guide
To ensure long-term stable operation of water chillers in laser additive manufacturing, follow this maintenance checklist. Based on general practices and alarm functions from the documents, perform these tasks regularly to optimize performance.
1. Regularly Check Cooling Medium
- Frequency: Quarterly or every 500 hours of operation.
- Operation: Test the purity, concentration, and pH of the cooling medium (pure water or ≤25% glycol solution) to avoid impurities causing corrosion or blockage.
- Tip: Increase frequency for high-use laser cladding to ensure heat dissipation efficiency.
2. Clean Filters and Condensers
- Frequency: Monthly, or every two weeks in dusty environments.
- Operation: After power off, disassemble and clean air filters, water filters, and condenser fins using water or compressed air to remove dust.
- Precautions: Avoid damaging components; maintain the IP44 protection rating.
3. Monitor Pump and Compressor Status
- Frequency: Check for abnormal noise or vibration before daily startup.
- Operation: Listen for sounds from the circulation pump and compressor; measure current periodically to ensure it does not exceed the maximum operating current (e.g., 22.8A for TFLW-3000W).
- Optimization: If flow decreases, replace worn parts promptly, such as LEO or Nanfang brand pumps.
.
4. Calibrate Temperature Controller and Alarm System
- Frequency: Every six months.
- Operation: Use the digital tube controller to verify temperature sensor accuracy; test alarm terminals (COM/NC and COM/NO) for proper contact action.
- Application: In laser quenching, ensure ±2°C accuracy to avoid process deviations.
5. Inspect Electrical Connections and Cables
- Frequency: Annually or after equipment relocation.
- Operation: Tighten power wiring connections; confirm cable size meets recommendations (e.g., 6mm² for TFLW-12000W); check grounding reliability.
- Safety: Refer to starting current data from documents to prevent overheating risks.
6. Maintenance Records and Seasonal Adjustments
- Frequency: Record operations and issues after each maintenance.
- Operation: Adjust settings based on ambient temperature (5~45°C); enhance heat dissipation in hot seasons and enable heating in cold seasons.
- Recommendation: Keep a log and integrate it into a monitoring system.
7. Long-Term Shutdown Maintenance
- Operation: Drain the cooling medium before shutdown, clean internally, and cover with a dust cover. Perform a full inspection upon reactivation.
- Tip: Suitable for intermittent production scenarios, such as project-based laser additive manufacturing.
By following this checklist, you can reduce failures, extend equipment life, and optimize the quality of laser cladding and quenching.
