In high-pressure, high-temperature (HPHT) pipeline applications within the oil, gas, and chemical processing industries, metal seated ball valves are critical for ensuring severe service isolation. However, constant exposure to abrasive slurries, corrosive fluids, and high-frequency cycling inevitably leads to surface degradation.
When a ball valve seat leaks, operators face a costly dilemma: replace the entire valve assembly or find a reliable, long-term restoration method.
Today, precision ball valve seat laser cladding repair has become the industry's premier solution. It restores worn components to OEM specifications at a fraction of the replacement cost and significantly extends their operational lifespan.
Why Do Ball Valve Seats Fail?
Metal-to-metal valve seats must maintain a flawless, micro-polished surface finish to achieve zero-leakage performance. In severe service environments, they are subjected to several destructive forces:
Galling and Adhesion: High operating torques combined with a lack of lubrication cause metal-to-metal friction, tearing the seat surfaces.
Erosion-Corrosion: High-velocity sands, muds, or chemical mediums aggressively wash away the protective surface layer.
Thermal Shocks: Drastic temperature fluctuations deform standard coatings, leading to micro-cracking and subsequent seat bypass.
Traditional repair methods like gas metal arc welding (GMAW) or thermal spraying (HVOF) often fail to deliver. GMAW introduces excessive heat, causing valve seat thermal distortion, while HVOF only provides a mechanical bond that can delaminate under high shear stress.
The Step-by-Step Laser Cladding Repair Process
A professional valve components reconditioning process utilizing laser technology follows a strict, controlled sequence to ensure structural integrity:
1. Inspection and Defect Evaluation
Before any welding occurs, the worn seat undergoes non-destructive testing (NDT), such as dye penetrant inspection, to identify the depth of cracks, scores, and pitting.
2. Machining and Pre-Sizing
The damaged layer is machined down uniformly using a CNC lathe. This removes the fatigued metal and creates a clean, precise undercut recess ready to receive the laser cladding powder alloy.

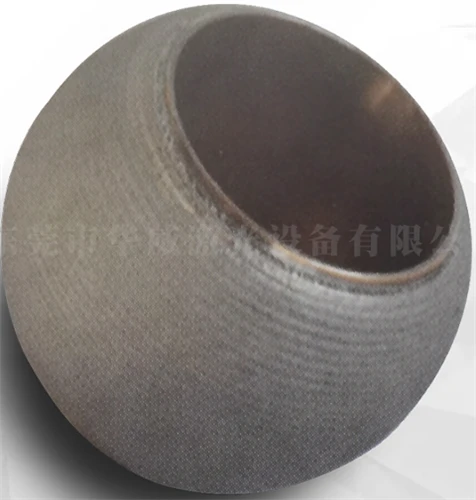

Using a state-of-the-art robotic laser cladding system, a high-power fiber laser melts a precise volume of the substrate and the protective alloy powder simultaneously.
Low Heat Input: The heat-affected zone (HAZ) is kept extremely narrow, preventing any warping or distortion of the valve seat's critical geometry.
True Metallurgical Bonding: Unlike spray coatings, the clad layer becomes an inseparable part of the base metal, eliminating the risk of spalling.
4. Post-Clad Machining and Lapping
The clad valve seat is machined back to its nominal dimensions. Finally, it undergoes a meticulous valve ball and seat lapping process to achieve a mirror-like finish and ensure a tight, bubble-tight seal.
Strategic Materials for Valve Seat Hardfacing
Choosing the right alloy determines how well the repaired valve will perform under field conditions. The most requested valve seat hardfacing materials include:
Stellite 6 Laser Cladding: The industry standard for general wear and galling resistance, maintaining high hardness even at temperatures up to 500°C.
Stellite 12 / Stellite 21: Selected for advanced applications requiring higher impact resistance or specific chemical compatibility.
Inconel 625 Overlays: Deployed primarily for severe sour gas (H₂S) or subsea environments where chemical corrosion resistance is the priority.
Tungsten Carbide Matrix: The ultimate choice for severe slurry erosion, often used in mining and oilfield tailing valves.
Benefits of Choosing Laser Cladding Over Valve Replacement
Key Performance Metrics Turnkey Valve Replacement Laser Cladding Repair
Cost Efficiency 100% Capital Investment Saves up to 60-70% of new part costs
Lead Time Weeks or Months (Supply chain dependent) Days (Drastically minimizes downtime)
Bond Integrity N/A Metallurgical bond (Zero risk of delamination)
Lifespan Baseline OEM Lifespan Extended up to 300% with premium alloys
Partner with a Certified Valve Repair Expert
Repairing severe service valve components requires specialized technical expertise and heavy-duty equipment. For plants looking to reduce their total cost of ownership (TCO) and maximize uptime, integrating laser surfacing into your maintenance cycle is a proven strategy.
Are you looking for a reliable industrial valve cladding service provider? Or do you need a dedicated internal diameter (ID) laser cladding machine to handle your in-house valve manufacturing? Our engineering team provides tailor-made solutions to match your exact operational requirements.
